How to Test Fireproof Cables for High-Rise Building Compliance？

Ensuring Safety from the Inside Out: A Comprehensive Guide to Testing Fireproof Cables for High-Rise Building Compliance

In the vertical landscapes of modern cities, high-rise buildings stand as marvels of engineering and ambition. Yet, their very scale presents unique and critical fire safety challenges. When fire strikes, safe evacuation and firefighting operations depend heavily on systems that must continue functioning: emergency lighting, fire alarms, smoke extraction fans, sprinkler pumps, and critical communication networks. The unsung heroes enabling this continued operation are fireproof cables. Selecting and verifying the correct cables isn't just good practice; it's a matter of life safety and strict regulatory compliance. For developers, contractors, MEP engineers, and facility managers, understanding how these cables are rigorously tested is paramount. This guide delves deep into the essential testing methodologies ensuring fireproof cables meet the demanding standards for high-rise buildings.

Why Fireproof Cable Compliance is Non-Negotiable in High-Rises

The stakes in high-rise fire safety are exponentially higher than in low-rise structures:

1. Extended Evacuation Times: Occupants may need significantly longer to descend many floors to safety.

2. Complex Firefighting: Firefighters rely on building systems to locate fires, control smoke, and supply water/power to upper floors.

3. Smoke Propagation: Vertical shafts (elevators, stairwells, service risers) act as chimneys, rapidly spreading smoke and toxic gases.

4. Structural Integrity: Prolonged, intense heat can compromise structural elements.

Fireproof cables are designed to maintain Circuit Integrity (CI) during a fire. This means they continue to transmit power and signals for a specified period (e.g., 30, 60, 90, or 120 minutes) under direct flame, extreme heat, mechanical shock (like falling debris or water jets), and even during the crucial cooling phase. Failure means critical systems go dark, potentially with catastrophic consequences.

Navigating the Global Regulatory Landscape

Compliance requirements vary by region, but core principles align. Key standards governing fireproof cables for high-rises include:

1. IEC 60331 Series (Circuit Integrity Under Fire): The international bedrock standard.

• IEC 60331-21: Tests on wires and cables (voltages up to 0.6/1.0 kV) – The most common test for building cables.

• IEC 60331-23: Tests on electric data cables.

• IEC 60331-25: Tests for optical fibre cables.

• The Test: Cables are mounted in a furnace, subjected to temperatures reaching at least 750°C (often up to 950°C for higher ratings) for the specified duration (e.g., 30, 60, 90, 120 mins). Crucially, rated voltage is applied throughout the test. The cable passes only if it maintains circuit integrity without short circuits or breaks for the entire duration and during a subsequent 15-minute cooling period under voltage. Mechanical shock (simulating falling debris) is often applied during the test.

2. BS 6387 (UK Standard - More Stringent Mechanical & Water Tests): A widely recognized standard, particularly demanding.

• Tests circuit integrity under fire (Category C - 950°C for 3 hours), plus:

• Mechanical Shock (Category Z): Applied during the fire test.

• Water Spray (Category W): Simulating firefighting hoses, applied directly to the burning cable.

• Combined Tests (CWZ): The ultimate challenge – fire, water, and shock simultaneously. Achieving a high CWZ rating (e.g., CWZ 3 hours) signifies exceptional resilience.




3. EN 50200 & EN 50577 (EU - Survival Times for Emergency Circuits): Specifically for cables powering emergency systems (lighting, alarms, etc.).

• EN 50200: PH (Protection Hours) rating (e.g., PH30, PH60, PH90, PH120) tested at 830°C +/- 40°C with direct flame impingement and mechanical shock. Includes a water spray test for higher ratings.

• EN 50577: Expands on EN 50200 for a wider range of cable types and survival times.




4. UL 2196 (North America - Fire-Resistive Cables): The primary standard in the US and Canada.

• Tests cables installed in a representative fire-rated wall/floor assembly (like ASTM E119/UL 263) for 1 or 2 hours. The cable must maintain functionality while the assembly maintains its fire rating. This tests the cable within a system.




5. Fire Propagation & Smoke Emission (Complementary Standards): While CI is paramount, limiting fire spread and toxic smoke is vital:

• IEC 60332-3 (Flame Spread - Category A, B, C, D): Measures the propensity of a flame to travel along a vertically mounted cable bundle. Category A (highest volume) is typically required for risers and escape routes in high-rises.

• IEC 61034 (Smoke Density): Measures the obscuration caused by smoke emitted from burning cables (lower values are better for visibility).

• IEC 60754 (Acidity/Gas Toxicity): Measures the amount of halogen acid gases (Corrosivity - Part 1) and pH/conductivity (Acidity - Part 2) released. Low smoke, zero halogen (LSZH/LS0H) cables minimize corrosive/toxic fumes.

The Rigorous Testing Process: A Step-by-Step Breakdown

Testing fireproof cables is complex, expensive, and conducted in specialized, accredited laboratories. Here’s what happens:

1. Sample Preparation:

• Cables are cut to specified lengths.

• Terminations are meticulously prepared to ensure electrical connections are secure and won't fail prematurely.

• Samples are conditioned according to standard requirements (temperature, humidity).




2. Mounting:

• Cables are mounted within the test furnace or chamber according to the specific standard's requirements. This could be on a ladder tray, clipped to a non-combustible surface, or within a simulated riser configuration. Spacing is critical.




3. Instrumentation:

• Thermocouples are attached to monitor temperatures at key points (furnace, cable surface, core conductors).

• Electrical circuits are connected: voltage is applied, and monitoring equipment continuously checks for continuity, insulation resistance, and short circuits.




4. The Fire Test:

• The furnace is ignited, rapidly heating to the target temperature profile (e.g., reaching 750°C+ within minutes and maintaining it).

• The rated voltage is applied and maintained throughout the test duration (e.g., 30, 60, 90, 120 mins).

• For standards like BS 6387 (Category Z) or EN 50200, mechanical shock (a weighted hammer) is applied at specified intervals during the fire exposure.

• For standards requiring water spray (BS 6387 Cat W, EN 50200 PH higher ratings), high-pressure water jets are directed onto the burning cable at defined points.




5. The Cooling Phase:

• After the specified fire duration, the heat source is turned off, but the voltage remains applied.

• The sample cools naturally (or sometimes forced air is used) for a defined period (e.g., 15 minutes in IEC 60331). Integrity must be maintained throughout cooling.




6. Post-Test Examination:

• Visual inspection: Assessing charring, deformation, and physical damage.

• Electrical verification: Confirming conductors did not short circuit or open circuit at any point during the entire test sequence (fire + cooling).




Interpreting the Results & Certification

• Pass/Fail: The fundamental requirement is maintaining circuit integrity (no short circuit, no open circuit) for the entire specified duration under fire and any additional stresses (shock, water) and throughout the cooling period, while under voltage.

• Rating: The cable is rated based on the duration it successfully endured (e.g., IEC 60331-21 90 mins, BS 6387 CWZ 120 mins, EN 50200 PH120).

• Third-Party Certification: Reputable manufacturers like QinFeng Cable submit their cables to independent, accredited testing laboratories (e.g., UL, Intertek, SGS, BASEC, LPCB). Successful testing results in formal certification reports and often listing in certification directories (e.g., UL Online Certifications Directory). Always demand valid, recent test certificates from an accredited lab specific to the cable type and construction you are purchasing.

• Traceability: Certified cables are typically marked along their length with the standard(s) met, rating, manufacturer, and often the certification body logo.

Beyond the Test: QinFeng's Commitment to Real-World Safety

At QinFeng Cable, we understand that passing the laboratory test is just the beginning. True safety requires:

• Rigorous Quality Control: Every batch of our fireproof cables undergoes stringent in-house testing (dimensional checks, electrical tests, material verification) to ensure consistency with the certified type.

• Material Integrity: We source only high-quality, verified LSZH compounds and fire-resistant materials (mica tapes, ceramic silicons) known for their performance under extreme conditions.

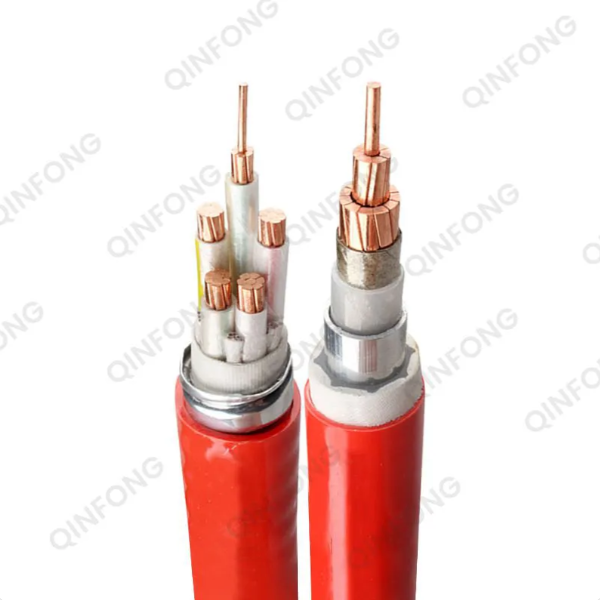

• Expertise in Construction: Our specialized fireproof cables (e.g., Mineral Insulated (MI), Fire Performance (FP), Enhanced Fire Resistant (EFR)) are manufactured using proven designs optimized for circuit integrity.

• Comprehensive Portfolio: We offer a wide range of fire-resistant cables (Power, Control, Instrumentation, Data) meeting various international standards (IEC 60331, BS 6387 CWZ, EN 50200, UL 2196) and ratings (30min to 120min+), ensuring the right solution for every critical circuit in your high-rise project.

• Technical Support: Our team provides guidance on cable selection, installation best practices (crucial for maintaining fire rating – e.g., correct sealing of penetrations), and access to full certification documentation.

The QinFeng Advantage for High-Rise Compliance:

• Proven Performance: Our fireproof cables are extensively tested and certified by leading international laboratories.

• Global Standards Compliance: We design and manufacture cables meeting the stringent requirements of IEC, BS, EN, UL, and other major standards.

• Uncompromising Quality: Stringent QC processes ensure every meter of cable delivers the promised fire performance.

• Technical Partnership: We work closely with engineers and contractors to specify the optimal fire-rated cable solution.

• Commitment to Safety: We view our cables as vital life-safety components, not just commodities.

Conclusion: Vigilance from Specification to Installation

Specifying, testing, and installing compliant fireproof cables is a critical responsibility in high-rise construction and renovation. Understanding the rigorous testing regimes behind standards like IEC 60331, BS 6387, EN 50200, and UL 2196 empowers B2B professionals to make informed decisions. It’s not enough to simply see a "fire resistant" label. Demand valid, third-party test certificates for the exact cable type and construction, verifying its performance under the specific fire, mechanical, and water exposure scenarios mandated for your project's location and risk profile.

Partnering with a manufacturer like QinFeng Cable, committed to rigorous testing, robust quality control, and deep technical expertise, provides the assurance needed for such critical applications. We invest in the highest levels of fire performance so you can invest in the safety of the buildings you create and manage. When lives depend on circuits staying alive during a fire, there is no room for compromise.

Ensure your next high-rise project is built on a foundation of proven safety. Contact QinFeng Cable today to discuss your fireproof cable requirements and request full certification documentation for our comprehensive range of compliant solutions.
