Voltage:0.4KV 10-35KV...
Model:TUV PV1-F...
Product Introduction:
After radiation treatment, the product has excellent anti-corrosion and weather resistance, which is suitable for the power generation of solar panels and the connection of related components, especially suitable for outdoor use. It is sun resistant and anti-aging. The use of low-smoke halogen-free flame retardant materials is safer.
Advantages:
The product has superior resistance to ultraviolet, heat, cold, ozone, hydrolysis, acid, salt, and wear resistance.
Applications:

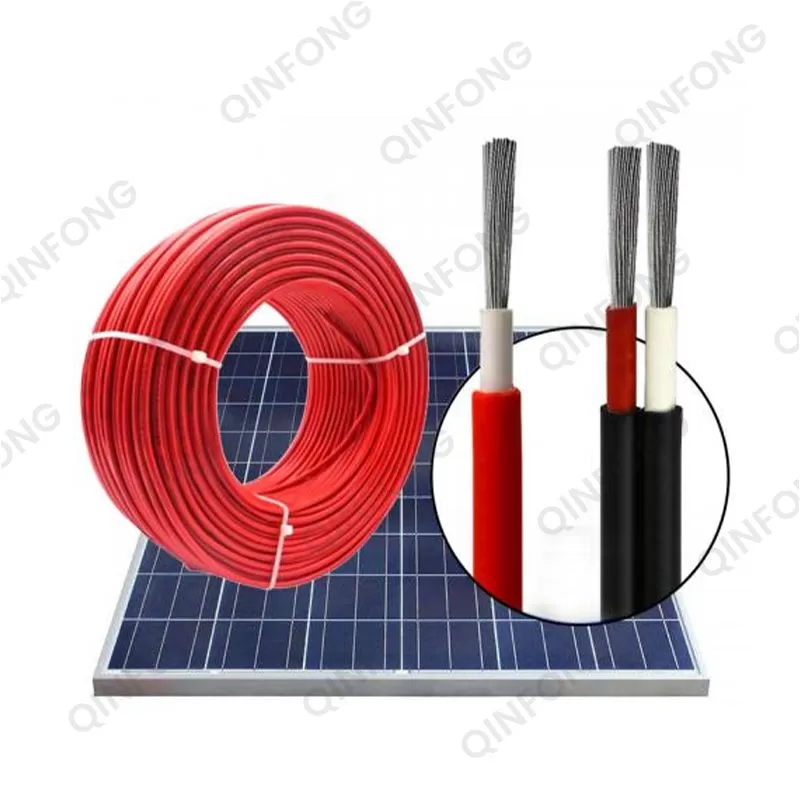

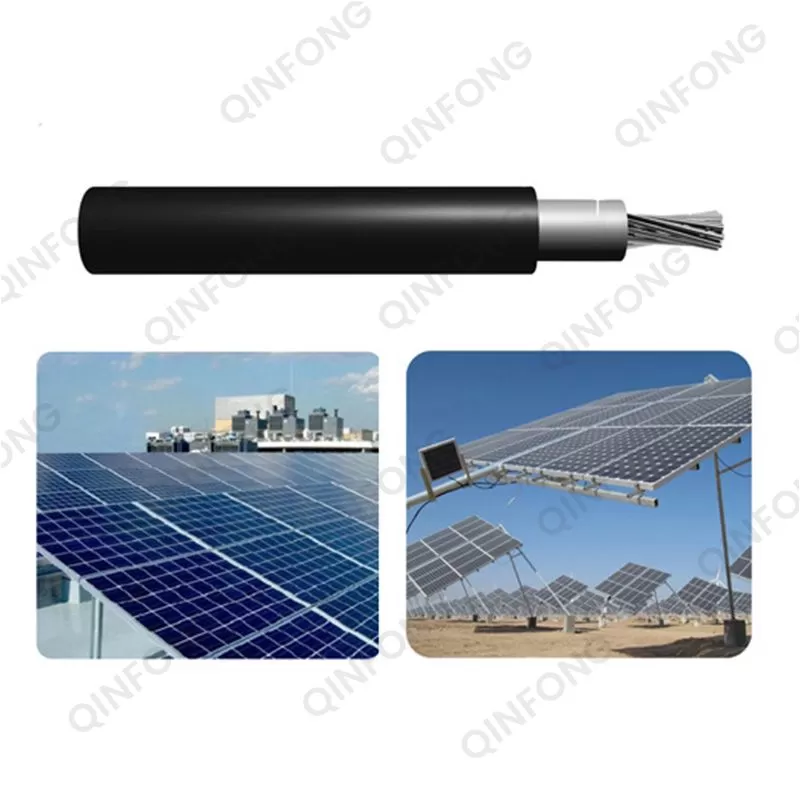

Photovoltaic wires are mainly used in solar photovoltaic systems, responsible for transferring power, connecting components, monitoring system operation and other key tasks.

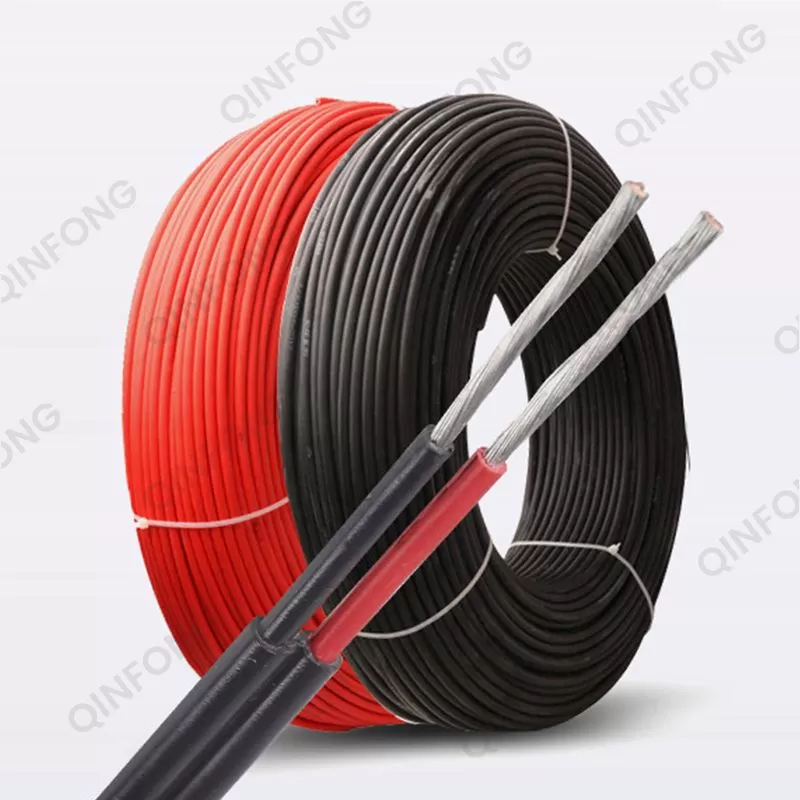

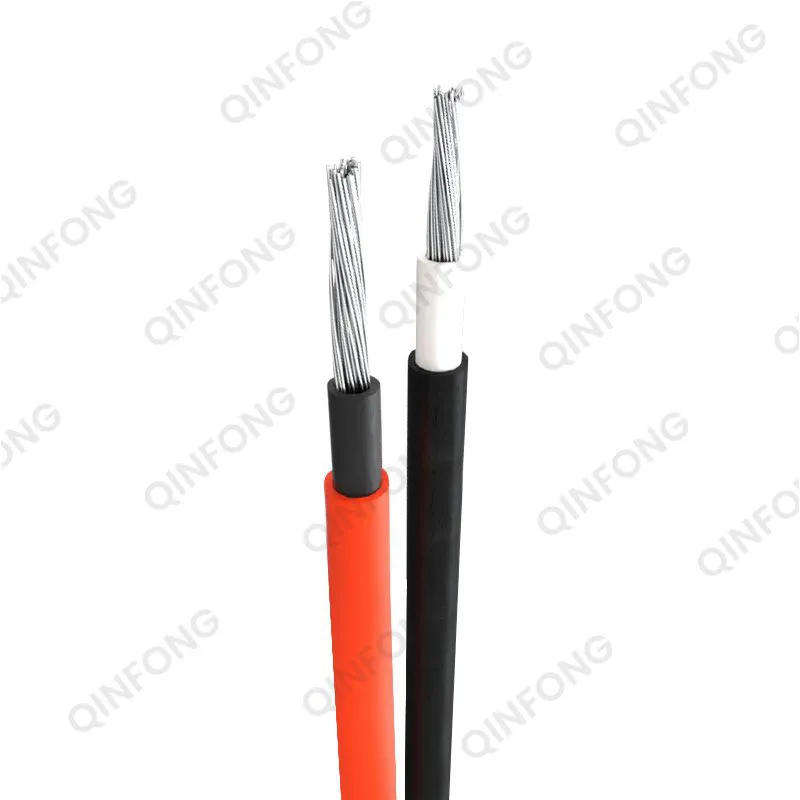

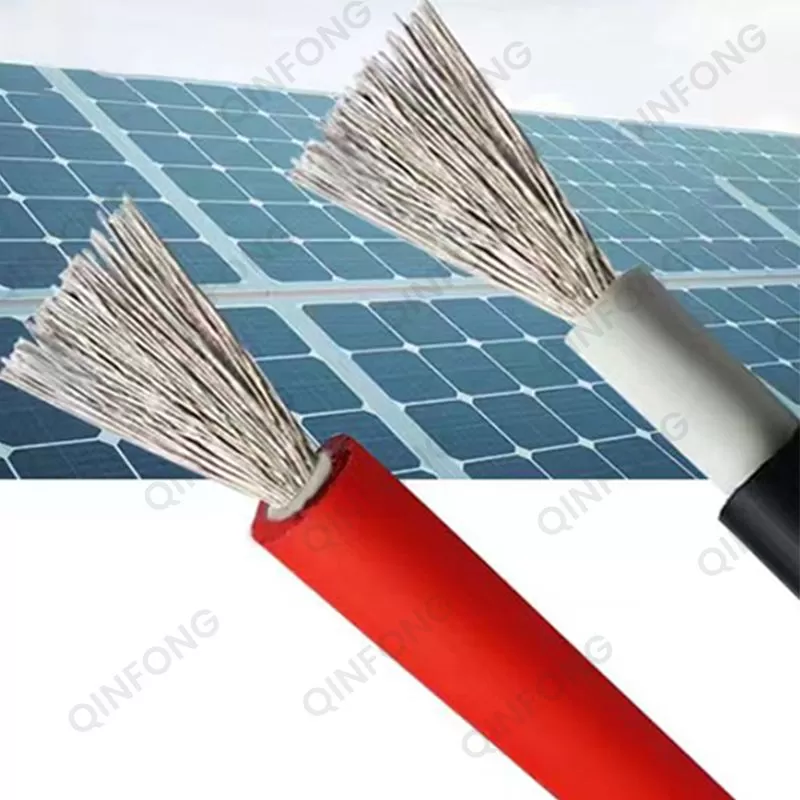

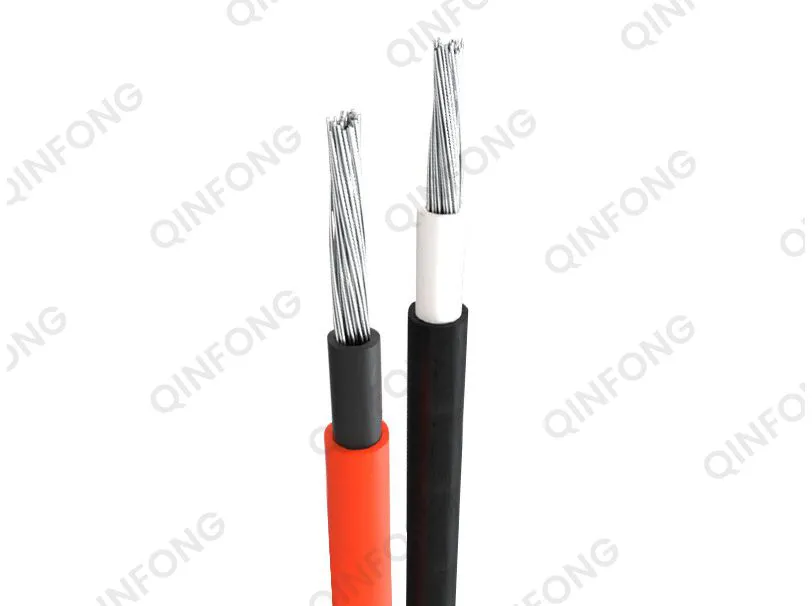

Conductor: Tinned copper wire
Insulation and sheath: Low smoke halogen-free polyolefin
Technical Parameters
| Model | Nominal Cross Section（mm2） | Conductor Structure（mm） | Conductor Diameter（mm） | Thickness of Insulation（mm） | Thickness of Sheath（mm） | Cable Diameter（mm） | DC Resistance at 20℃（Ω/km） |
| PV1-F | 1.5 | 30/0.2 | 1.6 | 1 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 50/0.2 | 2 | 1 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1 | 0.9 | 7 | 3.11 |
| PV1-F | 10 | 142/0.41 | 4.4 | 1 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 228/0.41 | 5.5 | 1 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 361/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
| PV1-F | 35 | 525/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
Customization
Our team is composed of experienced experts who are eager to help you find the right solution for your business.
Please specify product categories and specifications
Annual output of customized products: 8000 tons/year
Please specify the voltage: 0.3-35KV
Produce as per CE, UL, RoHS, IEC, etc.
Produce as per customers’ samples
We have the core technology of cable products, advanced production equipment and perfect manufacturing process. The company is composed of a professional team that has worked in the cable industry for nearly 20 years.
