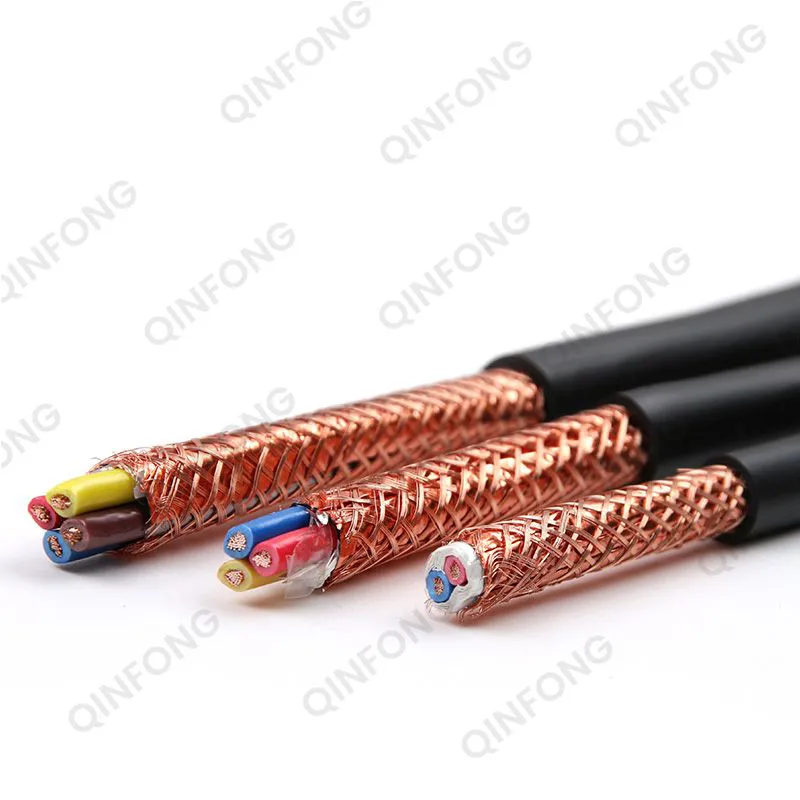

Shielded Cable is an essential component in electrical systems, designed to protect signals from electromagnetic interference (EMI) and radio frequency interference (RFI). QinFeng Shielded Wire consists of a conductive layer around its conductors, ensuring that the signal remains unaffected by external noise. This cable is crucial in environments where sensitive electronics or high-voltage sources are nearby, offering reliability and performance.

The Principle Behind Shielded Cable

The concept of Shielded Cable originated in Europe, where engineers added a metal shielding layer around the wiring to mitigate electromagnetic interference. The metal shielding uses the reflection, absorption, and skin effect properties to protect against EMI and RFI. This ensures that the cable exhibits excellent electromagnetic compatibility (EMC), allowing it to perform well in harsh electromagnetic environments while preventing signal distortion.

Electromagnetic Compatibility (EMC) refers to a cable's ability to resist electromagnetic interference while also preventing excessive electromagnetic radiation. For Shielded Cable, this means ensuring the cable works reliably in demanding environments without radiating interference that could disrupt surrounding devices and networks.

The Role of Shielded Cable in Preventing Interference

The Shielded Cable helps maintain the integrity of the transmitted signal, preventing interference from external sources. Here's how it works:

EMI vs RFI: The Types of Interference Shielded Cable Protects Against

• Electromagnetic Interference (EMI): Typically caused by low-frequency sources like motors, fluorescent lamps, and power lines.

• Radio Frequency Interference (RFI): High-frequency interference, often from wireless sources such as radio, television broadcasts, and radar.

By using Shielded Wire, these interferences are absorbed by the shielding layer, ensuring that signals are transmitted without degradation.

Shielded Wire Connection Methods

Proper grounding of Shielded Cable is crucial for effective interference protection. Typically, one end of the Shielded Wire is grounded, while the other is left floating. This prevents current from flowing through the shielding layer and causing interference with the signal. When both ends are grounded, the shielding effect improves, but signal distortion may increase.

Single vs Double Grounding for Shielded Wire

• Single-ended grounding: One end is grounded, the other is ungrounded, preventing potential interference caused by different ground resistances.

• Double-ended grounding: Both ends grounded provide a stronger shielding effect, although it may lead to signal distortion.

Types of Shielding in Shielded Wire

The Shielded Wire can use different materials and methods to shield against external noise:

• Active Shielding: Prevents the noise source from radiating outward, shielding the noise itself.

• Passive Shielding: Protects sensitive equipment from interference, essentially creating a barrier between the equipment and the noise source.

The shielding layer is typically made of non-magnetic materials like copper or aluminum, offering thin yet effective protection against EMI and RFI.

Grounding Methods for Shielded Cable

• Ungrounded Shielding: The shielding layer is left ungrounded, offering basic protection.

• Single-ended Grounding: One end of the shield is grounded, helping to prevent current from flowing through the shielding layer.

• Double-ended Grounding: Both ends are grounded, providing the best shielding performance, although it may introduce some signal distortion.

Benefits of Using Shielded Cable

1. Prevents Signal Interference: Shielding ensures signals remain clear and unaffected by external noise sources.

2. Improved Performance: Essential for applications in sensitive electronic environments, such as telecommunications and medical devices.

3. Durable and Reliable: Made with high-quality materials like copper or aluminum, shielded wire offers long-lasting protection against environmental factors.

4. Versatile Applications: Perfect for use in industrial, residential, and commercial settings, as well as networking applications with shielded ethernet cable.

When it comes to preventing interference and ensuring reliable signal transmission, QinFeng Shielded Cable is the go-to solution. With its robust design, effective grounding techniques, and versatile applications, Shielded Wire plays a vital role in protecting sensitive equipment from EMI and RFI. Whether you need high-performance Shielded Ethernet Cable for networking or Shielded Cable for industrial uses, you can trust the superior protection offered by our products.
